Product Summary
The L7812CV is a three-terminal positive regulator. It is available in TO-220, TO-220FP, TO-220FM, TO-3 and D2PAK packages and several fixed output voltages, making it useful in a wide range of applications. The L7812CV can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. The L7812CV employs internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, the L7812CV can deliver over 1A output current. Although designed primarily as fixed voltage regulators, the L7812CV can be used with external components to obtain adjustable voltage and currents.
Parametrics
L7812CV absolute maximum ratings: (1)VI, DC Input Voltage: 35V for VO= 5 to 18V; 40V for VO= 20, 24V; (2)IO, Output Current: Internally Limited; (3)Ptot, Power Dissipation: Internally Limited; (4)Tstg, Storage Temperature Range: -65 to 150℃; (5)Top, Operating Junction Temperature Range: -55 to 150℃.
Features
L7812CV features: (1)output current to 1.5A; (2)output voltages of 5; 5.2; 6; 8; 8.5; 9; 10; 12; 15; 18; 24V; (3)thermal overload protection; (4)short circuit protection; (5)output transition SOA protection.

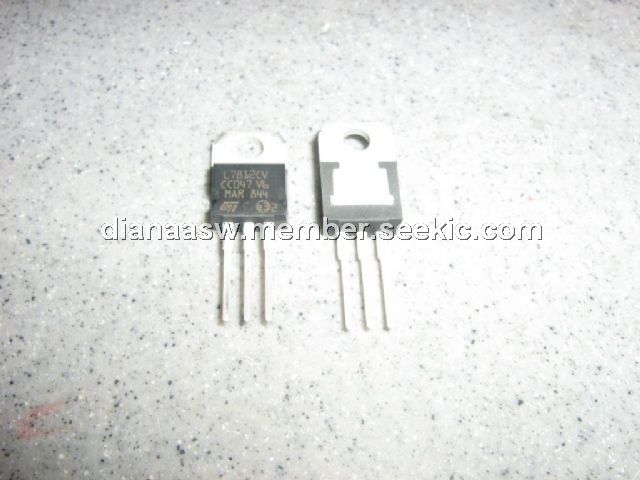

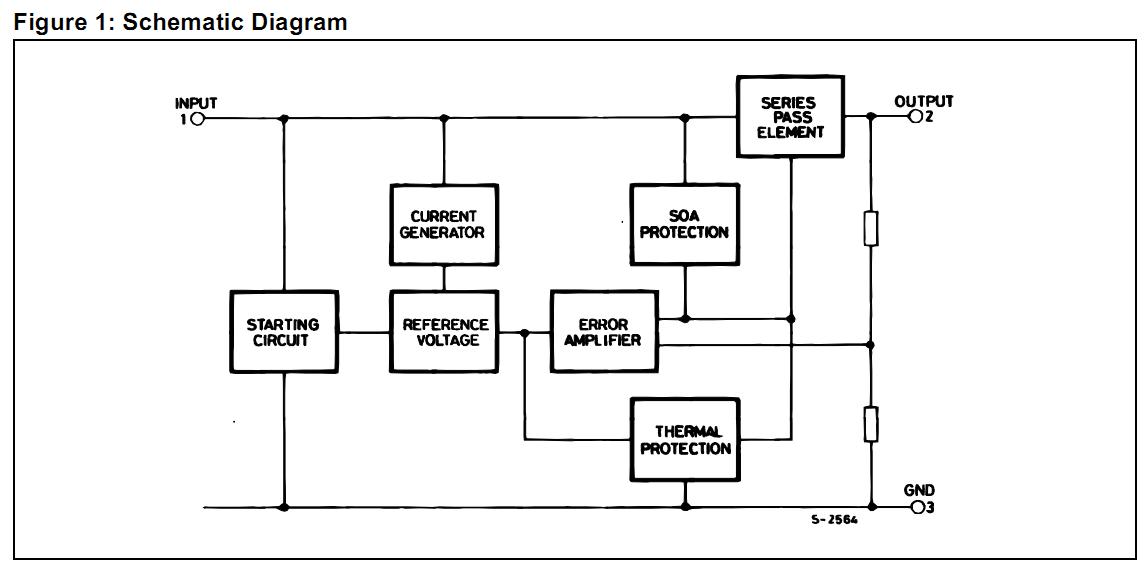

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 L7812CV |
STMicroelectronics |
Linear Regulators - Standard 12V 1.0A Positive |
Data Sheet |
|
|
||||||||||||
|
L7812CV-DG |
STMicroelectronics |
Linear Regulators - Standard POS Voltage Reg IC 3-Terminal 1.5A |
Data Sheet |
|
|
||||||||||||
