Product Summary

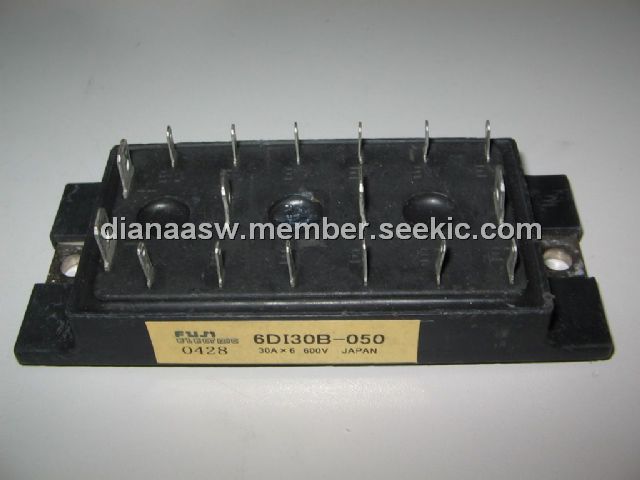

The 6DI30B-050 is a power transistor module. The applications of the device include AC motor controls and air conditioners.
Parametrics
6DI30B-050 absolute maximum ratings: (1)VCBO: 600V; (2)VCEO: 600V; (3)VCEO(SUS): 450V; (4)VEBO: 6V; (5)DC, IC: 30A; 1ms, ICP: 60A; DC, -IC: 30A; (6)DC, IB: 3A; 1ms, IBP: 6A; (7)one transistor, PC: 200W; six transiistor, PC: 1200W; (8)Tj: 150℃; (9)Tstg: -40 to 125℃; (10)m: 210g; (11)Viso: 2500V.
Features
6DI30B-050 features: (1)including free wheeling diode; (2)high DC current gain; (3)insulated type.

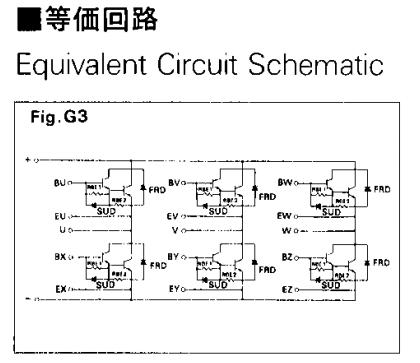

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 6DI30B-050 |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
6DI30B-050 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
6DI30MA-050 |
Other |
|
Data Sheet |
Negotiable |
|
||||
