Product Summary

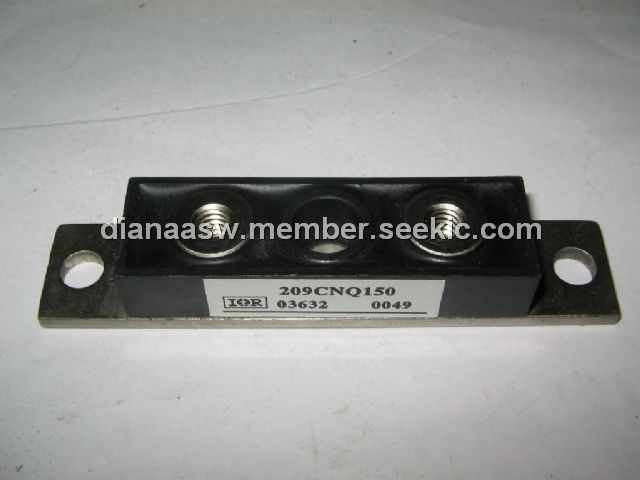

The 209CNQ150 center tap Schottky rectifier module has been optimized for low reverse leakage at high temperature. The proprietary barrier technology of 209CNQ150 allows for reliable operation up to 175 ℃ junction temperature. Typical applications of 209CNQ150 are in high current switching power supplies, plating power supplies, UPS systems, converters, free-wheeling diodes, welding, and reverse battery protection.
Parametrics
209CNQ150 absolute maximum ratings: (1)Max. AverageForward Current (Per Leg): 100 A at 50% duty cycle @ TC = 118 ℃, rectangular wave form; (2)Max. Peak One Cycle Non-Repetitive: 10,000 A at 5μs Sine or 3μs Rect. pulse; (3)Surge Current (Per Leg): 1200 A at 10ms Sine or 6ms Rect. pulse; (4)Non-RepetitiveAvalancheEnergy: 15 mJ at TJ = 25 ℃, IAS = 1 Amps, L = 30 mH; (5)Repetitive Avalanche Current: 1 A at Current decaying linearly to zero in 1 μsec Frequency limited by TJ max. VA = 1.5 x VR typical.
Features
209CNQ150 features: (1)175 ℃ TJ operation; (2)Center tap module; (3)High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance; (4)Low forward voltage drop; (5)High frequency operation; (6)Guard ring for enhanced ruggedness and long term reliability.
Diagrams
 |
