Product Summary

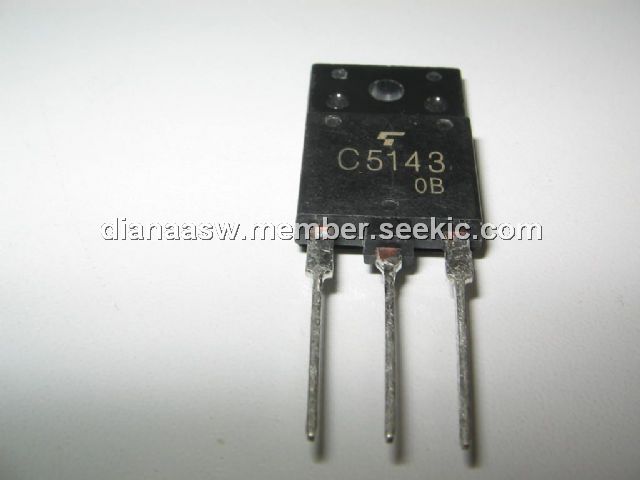

The C5143 is a field effect transistor.

Parametrics

C5143 absolute maximum ratings: (1)collector-base voltage: 1700 V; (2)collector-emitter voltage: 700 V; (3)emitter-base voltage: 5 V; (4)collector current: 10 A; (5)base current: 5 A; (6)collector power dissipation: 50 W; (7)junction temperature: 150 ℃; (8)storage temperature range: -55 to 150 ℃.

Features

C5143 features: (1)high voltage: VCBO=1700 V; (2)low saturation voltage: VCE(sat)=3V max; (3)high speed: tf=0.2 μs typ; (4)bult-in damper type; (5)collector metal is fully covered with mold resin.

Diagrams

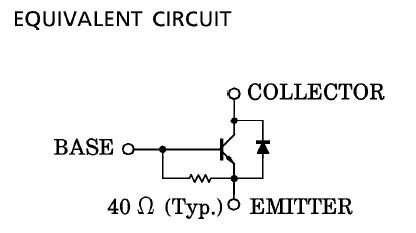

C5143 equivalent circuit diagram
