Product Summary

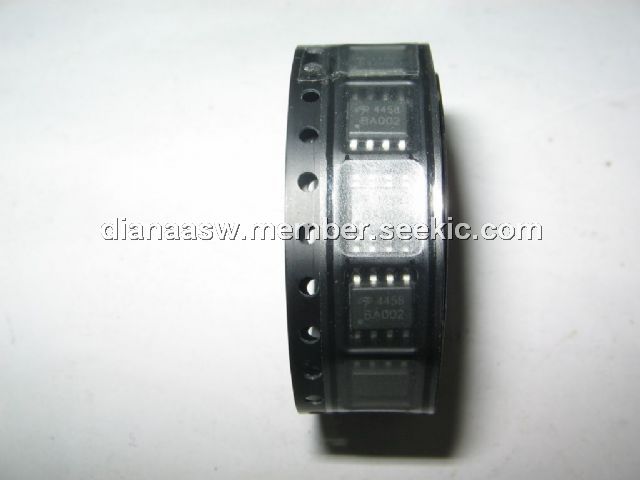

The AO4458 is a N-Channel Enhancement Mode Field Effect Transistor. The AO4458 uses advanced trench technology to provide excellent RDS(ON) with low gate charge. The AO4458 is ESD protected and it is suitable for use as a load switch or in PWM applications.

Parametrics

AO4458 absolute maximum ratings: (1)Gate-Source Voltage, VGS: ±20V; (2)Drain-Source Voltage, VDS: 30V; (3)Power Dissipation, PD: ; (4)Junction and Storage Temperature Range, Tj, Tstg: -55 to 150℃; (5)Repetitive avalanche energy L=0.3mH, EAR: 375mJ; (6)Pulsed Drain Current, IDM: 80A; (7)Avalanche Current, IAR: 50A.

Features

AO4458 features: (1)VDS (V) = 30V; (2)ID = 20A VGS = 10V); (3)RDS(ON) < 4.6mΩ (VGS = 10V); (4)RDS(ON) < 6.4mΩ (VGS = 4.5V).

Diagrams

AO4458 circuit diagram
