Product Summary

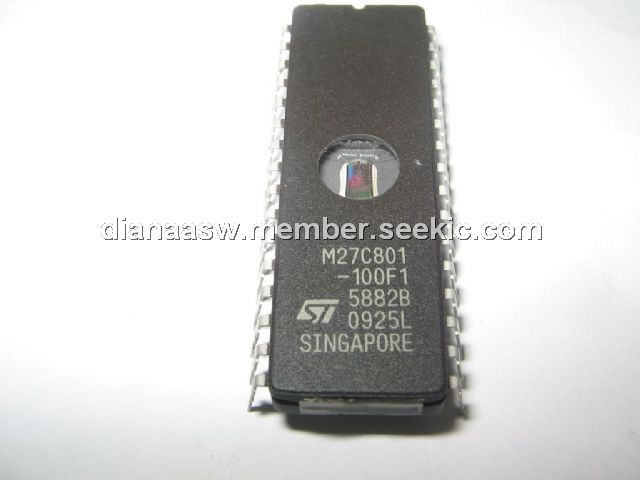

The M27C801-100F1 is an 8 Mbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable). It is ideally suited for applications where fast turn-around and pattern experimentation are important requirements and is organized as 1,048,576 by 8 bits.

Parametrics

M27C801-100F1 absolute maximum ratings: (1)TA, Ambient operating temperature:–40 to 125℃; (2)TBIAS, Temperature under bias: –50 to 125℃; (3)TSTG, Storage temperature: –65 to 150℃; (4)VIO,Input or output voltage (except A9): –2 to 7 V; (5)VCC, Supply voltage: –2 to 7 V; (6)VA9, A9 voltage: –2 to 13.5 V; (7)VPP, Program supply voltage: –2 to 14 V.

Features

M27C801-100F1 features: (1)5 V ± 10% supply voltage in Read operation; (2)Access time: 55 ns; (3)low Power Consumption: Active current: 35 mA at 5 MHz; Standby current: 100 μA; (4)Programming voltage: 12.75 V ± 0.25 V; (5)Programming time: 50 μs/word; (6)Electronic signature, Manufacturer code: 20h; Device code: 42h; (7)ECOPACK packages available.

Diagrams

M27C801-100F1 logic diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
M27C801-100F1
M27C801-100F1

STMicroelectronics

EPROM 8M (1Mx8) 100ns

Data Sheet

Negotiable
