Product Summary

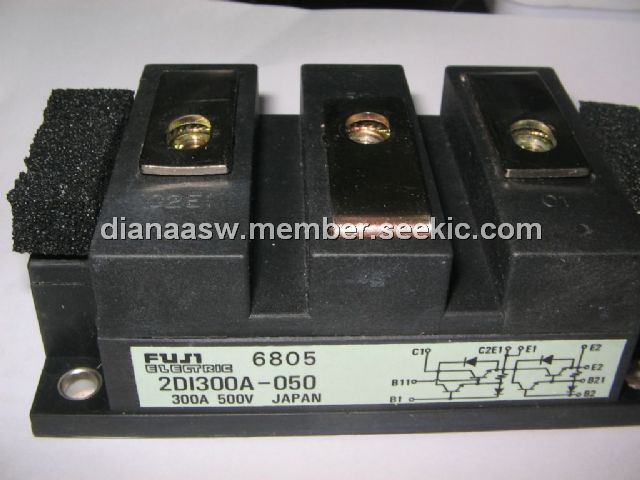

The 2DI300A-050 is a power transistor module. The applications of the 2DI300A-050 include high power switching, AC motor controls, welding machines, uninterruptible power supply.
Parametrics
2DI300A-050 absolute maximum ratings: (1)VCBO: 600 V; (2)VCEO: 600 V; (3)VEBO: 10 V; (4)IC: 300 A; (5)ICP: 600 A; (6)IB: 10 A; (7)IBP: 20 A; (8)Pc: 1200 W; (9)Tj: +150 ℃; (10)Tstg: -40 to +125 ℃.
Features
2DI300A-050 features: (1)high voltage; (2)high DC current gain; (3)insulated type.

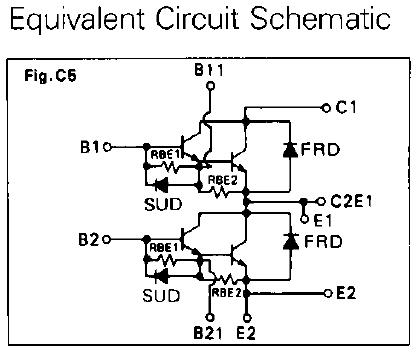

Diagrams
