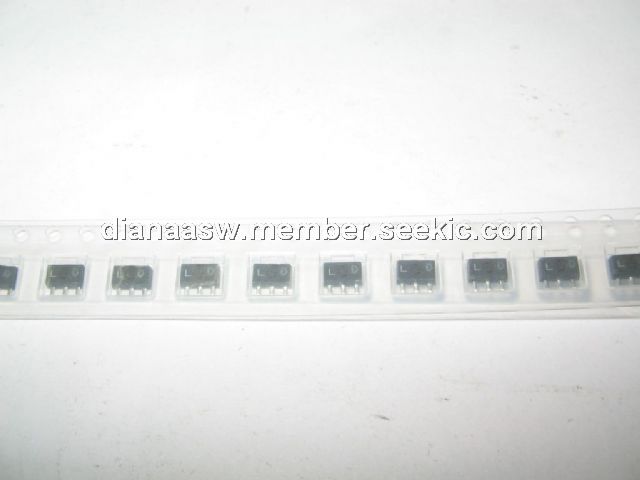

Product Summary
The 2SA1736 is a TOSHIBA transistor. The applications of the 2SA1736 include power amplifier applications, power switching applications.
Parametrics
2SA1736 absolute maximum ratings: (1)Collector-base voltage: -60 V; (2)Collector-emitter voltage: -60 V; (3)Emitter-base voltage: –6 V; (4)Collector current: –3 A; (5)base current: -0.6 A; (6)Collector power dissipation: 500 mW; (7)Collector power dissipation: 1000 mW; (8)Junction temperature: 150 ℃; (9)Storage temperature: -55 to +150 ℃.
Features
2SA1736 features: (1)Low Saturation Voltage: VCE(sat) = -0.5V (max) (IC = -1.5A); (2)High Speed Switching Time: tstg = 0.2μs(typ.); (3)Small Flat Package; (4)PC = 1 to 2W (mounted on ceramic substrate); (5)Complementary to 2SC4541.

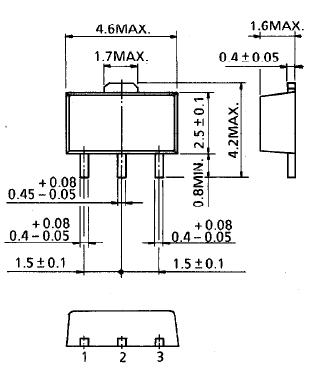

Diagrams
