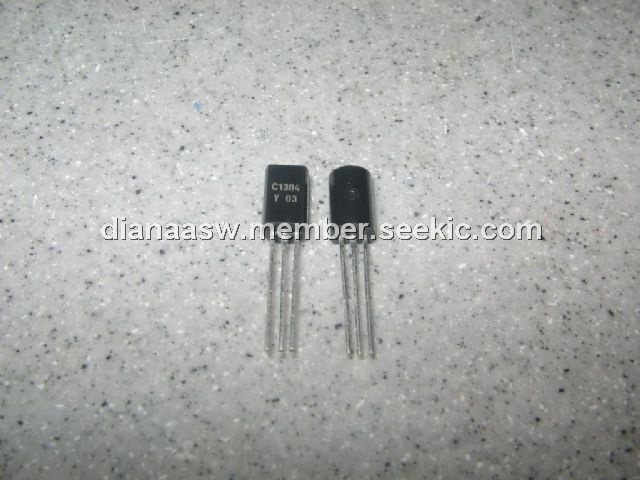

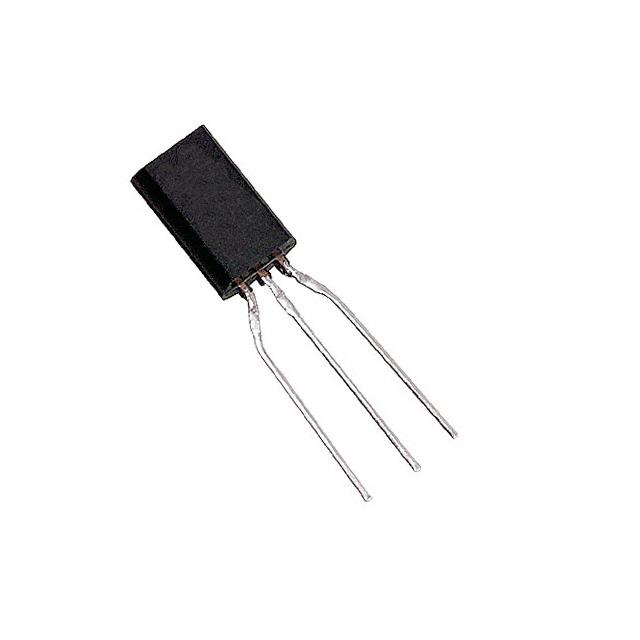

Product Summary

The 2SC1384 is a Silicon NPN epitaxial planer type transistor. It is designed for low-frequency power amplification and driver amplification Complementary to 2SA683 and 2SA684.

Parametrics

2SC1384 absolute maximum ratings: (1)Collector to base voltage, VCBO: 60V; (2)Collector to emitter voltage, VCEO: 50V; (3)Emitter to base voltage, VEBO: 5V; (4)Peak collector current, ICP: 1.5A; (5)Collector current, IC: 1A; (6)Collector power dissipation, PC: 1W; (7)Junction temperature, Tj: 150℃; (8)Storage temperature, Tstg: -55 to 150℃.

Features

2SC1384 features: (1)Low collector to emitter saturation voltage VCE(sat); (2)Complementary pair with 2SA683 and 2SA684.

Diagrams

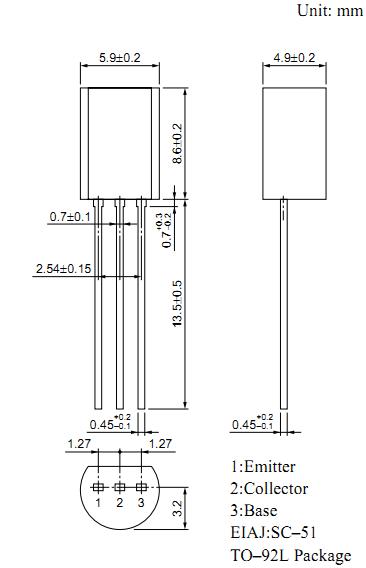

2SC1384 dimensions
