Product Summary

The FW82801FBM is a highly integrated multifunctional communications I/O controller hub that provides the interface to the PCI bus and integrates many of the functions needed in today’s communications applications.

Parametrics

FW82801FBM absolute maximum ratings: (1)Case Temperature under Bias: 0 to +109℃; (2)Storage Temperature: -55 to +150℃; (3)Voltage on Any 3.3 V Pin with Respect to Ground: -0.5 to Vcc + 0.3 V; (4)Voltage on Any 5 V Tolerant Pin with Respect to Ground (VREF=5 V): -0.5 to VREF + 0.3 V; (5)1.8 V Supply Voltage with Respect to Vss: -0.5 to +2.7V; (6)3.3 V Supply Voltage with Respect to Vss: -0.5 to +4.6 V; (7)5.0 V Supply Voltage (Vref) with Respect to Vss: -0.5 to +5.5 V; (8)Maximum Power Dissipation: 2.0 W.

Features

FW82801FBM features: (1)Supports Intel processors, the 82815E GMCH and the 82810E GMCH; (2)8-Bit Hub Interface: 266 Mbyte/s maximum throughput; (3)Two integrated LAN controllers; (4)USB: Includes one UHCI Host Controller with a total of two ports ; USB 1.1 compliant; (5)PCI Bus interface: Supports PCI Rev 2.2 specification at 33 MHz; 133 Mbyte/s maximum throughput; (6)Low-Pincount (LPC) interface; (7)Firmware Hub (FWH) interface: Supports 8-Mbyte memory size; (8)Integrated IDE controller supports Ultra100 DMA, Ultra66 and Ultra33 DMA mode transfers.

Diagrams

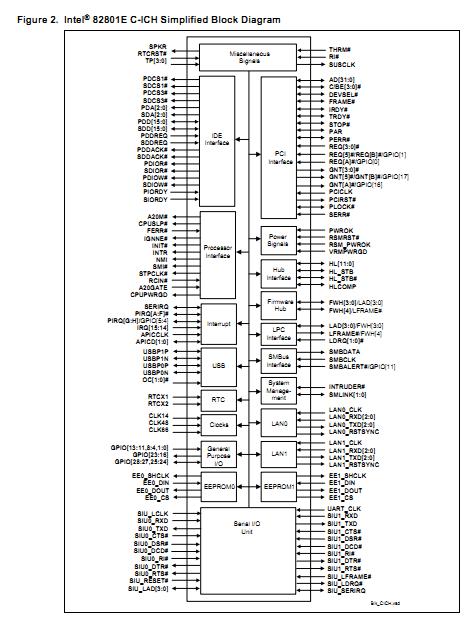

FW82801FBM block diagram
