Product Summary

The IRFB3077PBF is a HEXFET Power MOSFET. The applications of the IRFB3077PBF include High Efficiency Synchronous Rectification in SMPS, Uninterruptible Power Supply, High Speed Power Switching, Hard Switched and High Frequency Circuits.

Parametrics

IRFB3077PBF absolute maximum ratings: (1)Continuous Drain Current, VGS @ 10V (Silicon Limited): 210 A; (2)Continuous Drain Current, VGS @ 10V (Silicon Limited): 150 A; (3)ID @ TC = 25℃ Continuous Drain Current, VGS @ 10V (Wire Bond Limited): 120 A; (4)Pulsed Drain Current: 850 A; (5)PD @TC = 25℃ Maximum Power Dissipation: 370 W; (6)Linear Derating Factor: 2.5 W/℃; (7)Gate-to-Source Voltage: ±20 V; (8)Peak Diode Recovery: 2.5 V/ns; (9)Operating Junction and Storage Temperature Range: -55 to +175 ℃.

Features

IRFB3077PBF features: (1)Worldwide Best RDS(on) in TO-220; (2)Improved Gate, Avalanche and Dynamic dV/dt Ruggedness; (3)Fully Characterized Capacitance and Avalanche SOA; (4)Enhanced body diode dV/dt and dI/dt Capability.

Diagrams

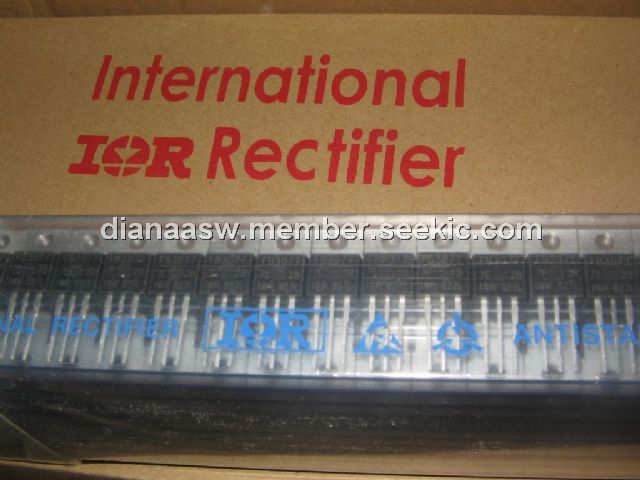

IRFB3077PBF diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IRFB3077PBF
IRFB3077PBF
International Rectifier
MOSFET MOSFT 75V 210A 3.3mOhm 160nC Qg
Data Sheet
0-1: $2.88
1-25: $1.97
25-100: $1.46
100-250: $1.40
