Product Summary

The 1.5KE6.8A is a Transient Voltage Suppressor.

Parametrics

1.5KE6.8A absolute maximum ratings: (1)Peak power dissipation with a 10/1000μs waveform: 1500 W; (2)Steady state power dissipation at TL = 75℃, lead lengths 0.375” (9.5mm): 6.5 W; (3)Peak forward surge current, 8.3ms single half sine-wave unidirectional only: 200 A; (4)Maximum instantaneous forward voltage at 100A for unidirectional only: 3.5/5.0 V; (5)Typical thermal resistance junction-to-lead: 20 ℃/W; (6)Typical thermal resistance junction-to-ambient: 75 ℃/W; (7)Operating junction and storage temperature range: –55 to +175 ℃.

Features

1.5KE6.8A features: (1)Underwriters Laboratory Recognition under UL standard for safety 497B: Isolated Loop Circuit Protection; (2)Glass passivated junction; (3)1500W peak pulse power capabililty on 10/1000μs waveform, repetition rate (duty cycle): 0.05%; (4)Excellent clamping capability; (5)Low incremental surge resistance; (6)Very fast response time; (7)Includes 1N6267 thru 1N6303A.

Diagrams

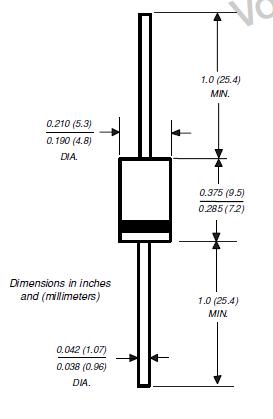

1.5KE6.8A diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
1.5KE6.8A
1.5KE6.8A

Littelfuse

TVS Diodes - Transient Voltage Suppressors 1500W 5.8V Uni-Directional

Data Sheet

0-1: $0.40
1-10: $0.36
10-100: $0.28
100-250: $0.25
1.5KE6.8A/1
1.5KE6.8A/1

Vishay Semiconductors

TVS Diodes - Transient Voltage Suppressors 1500W 6.8V 5% Unidir

Data Sheet

Negotiable
1.5KE6.8A/54
1.5KE6.8A/54

Vishay Semiconductors

TVS Diodes - Transient Voltage Suppressors 1500W 6.8V Unidirect

Data Sheet

0-1: $1.18
1-10: $1.08
10-100: $0.98
100-250: $0.90
1.5KE6.8A-B
1.5KE6.8A-B

Littelfuse

TVS Diodes - Transient Voltage Suppressors 1500W 5.8V Uni-Directional

Data Sheet

0-1: $0.40
1-10: $0.36
10-100: $0.28
100-250: $0.25
1.5KE6.8A-E3/1
1.5KE6.8A-E3/1

Vishay Semiconductors

TVS Diodes - Transient Voltage Suppressors 1500W 6.8V 5% Unidir

Data Sheet

Negotiable
1.5KE6.8A/4
1.5KE6.8A/4

Vishay Semiconductors

TVS Diodes - Transient Voltage Suppressors 1500W 6.8V Unidirect

Data Sheet

Negotiable
1.5KE6.8A-E3/51
1.5KE6.8A-E3/51

Vishay Semiconductors

TVS Diodes - Transient Voltage Suppressors 1500W 6.8V Unidirect

Data Sheet

0-1: $1.10
1-10: $1.04
10-50: $0.98
50-100: $0.92
1.5KE6.8A-E3/54
1.5KE6.8A-E3/54

Vishay Semiconductors

TVS Diodes - Transient Voltage Suppressors 1500W 6.8V Unidirect

Data Sheet

0-1: $0.34
1-10: $0.31
10-100: $0.29
100-250: $0.25
