Product Summary

The IRFK3D450 is an isolated base power HEX-pak assembly-half bridge configuration.

Parametrics

IRFK3D450 absolute maximum ratings: (1)continuous drain current (Tc=25℃): 125 A; (2)continuous drain current (Tc=100 ℃): 55 A; (3)pulse drain current: 435 A; (4)maximum power dissipation: 625 W; (5)gate-to-source voltage: 20 V; (6)R.M.S. isolation voltage, circuit to base: 2.5 kV; (7)operating junction temperature range: -40℃ to +50℃; (8)storage temperature range: -40℃ to +150℃.

Features

IRFK3D450 features: (1)high current capability; (2)UL recognised E78996; (3)electrically isolated base plate; (4)easy assembly into equipment.

Diagrams

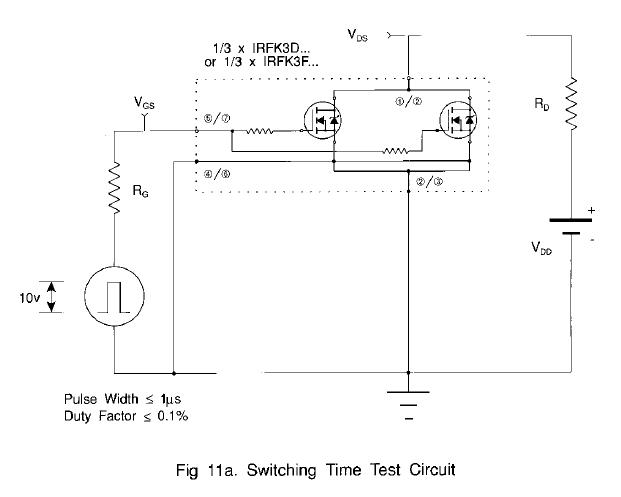

IRFK3D450 switching test time diagram
