Product Summary

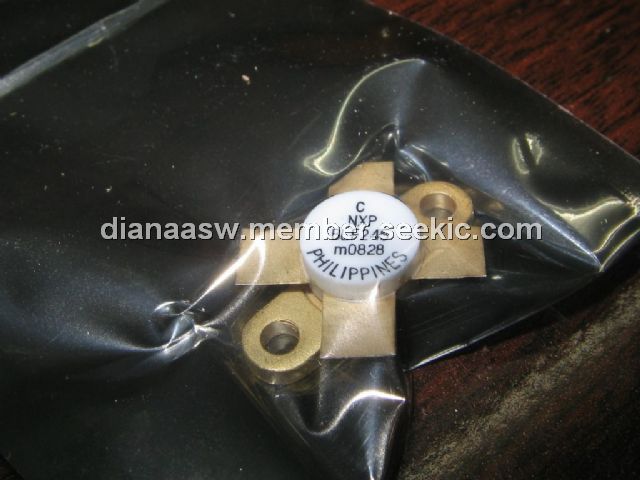

The BLF245 is a Silicon N-channel enhancement mode vertical D-MOS transistor which is designed for large signal amplifier applications in the VHF frequency range. The BLF245 is encapsulated in a 4-lead SOT123A flange package, with a ceramic cap. All leads are isolated from the flange. Matched gate-source voltage (VGS) groups are available on request.

Parametrics

BLF245 absolute maximum ratings: (1)drain-source voltage: 65 V at VGS = 0; (2)gate-source voltage: ±20 V at VDS = 0; (3)drain current (DC): 6 A; (4)total power dissipation: 68 W at Tmb ≤ 25 ℃ ; (5)storage temperature: -65 to 150 ℃; (6)junction temperature: 200 ℃.

Features

BLF245 features: (1)High power gain; (2)Low noise figure; (3)Easy power control; (4)Good thermal stability; (5)Withstands full load mismatch.

Diagrams

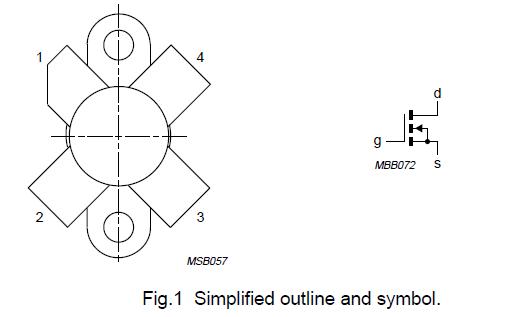

BLF245 pin configuration diagram
