Product Summary

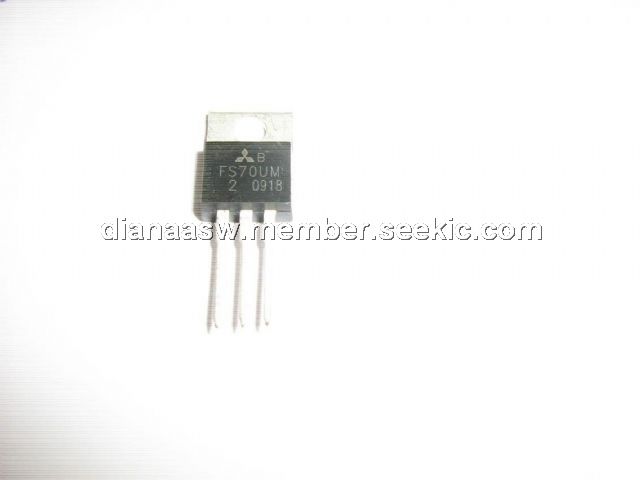

The FS70UM-2 is a power MOSFET. The applications of the devicei include Motor control, Lamp control, Solenoid control DC-DC converter, etc.
Parametrics
FS70UM-2 absolute maximum ratings: (1)VDSS, Drain-source voltage: 100V; (2)VGSS, Gate-source voltage: ±20V; (3)ID, Drain current: 70A; (4)IDM, Drain current (Pulsed): 280A; (5)IDA, Avalanche drain current (Pulsed): 70A; (6)IS, Source current: 70A; (7)ISM, Source current (Pulsed): 280A; (8)PD, Maximum power dissipation: 125W; (9)Tch, Channel temperature: -55 to 150℃; (10)Tstg, Storage temperature: -55 to 150℃; (11)Weight: 2.0g.
Features
FS70UM-2 features: (1)10V drive; (2)VDSS: 100V; (3)rDS (ON) (MAX): 20mΩ; (4)ID: 70A; (5)Integrated Fast Recovery Diode (TYP.): 120ns.

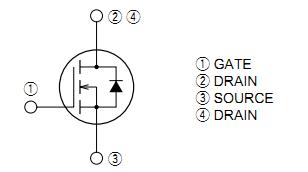

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FS70UM-2 |
|
MOSFET N-CH 100V 70A TO-220 |
Data Sheet |
Negotiable |
|
||||||
