Product Summary

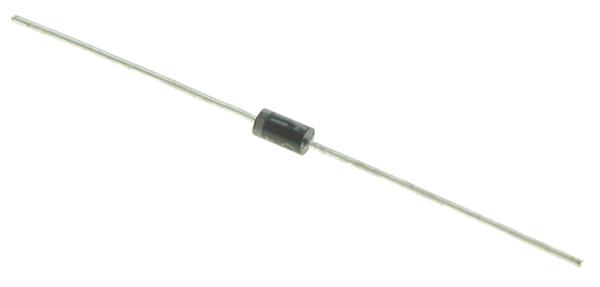

The 1N4007 is a rectifier, which is Rugged glass package, using a high temperature alloyed construction.
Parametrics
1N4007 absolute maximum ratings: (1)repetitive peak reverse voltage: 1000 V; (2)continuous reverse voltage: 1000 V; (3)average forward current: 1.00 A at averaged over any 20 ms; (4)period; Tamb = 75 ℃, 0.75 A at averaged over any 20 ms; (5)period; Tamb = 100 ℃; (6)continuous forward current: 1.00 A at Tamb = 75 ℃; (7)repetitive peak forward current: 10 A; (8)non-repetitive peak forward current: 30 A; (9)storage temperature: -65 to +175 ℃; (10)junction temperature: -65 to +175 ℃.
Features

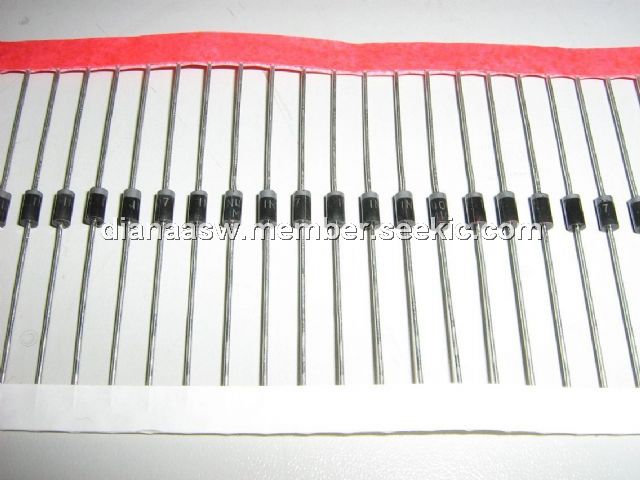

1N4007 features: (1)Glass passivated; (2)High maximum operating temperature; (3)Low leakage current; (4)Excellent stability; (5)Available in ammo-pack.

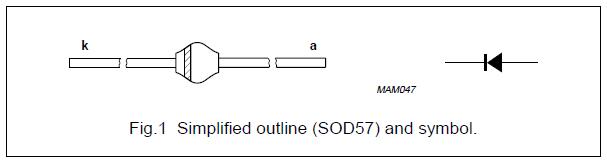

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 1N4007 |
Fairchild Semiconductor |
Rectifiers Vr/1000V Io/1A |
Data Sheet |
|
|
||||||||||||
 |
1N4007/1 |
Vishay Semiconductors |
Rectifiers Vr/1000V Io/1A BULK |
Data Sheet |
Negotiable |
|
||||||||||||
 |
1N4007/54 |
|
RECTIFIER 1A 1000V DO-41 |
Data Sheet |
Negotiable |
|
||||||||||||
 |
1N4007/L |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
1N4007_Q |
Fairchild Semiconductor |
Rectifiers Vr/1000V Io/1A |
Data Sheet |
|
|
||||||||||||
|
1N4007-19 |
Taiwan Semiconductor |
Rectifiers 1A,1600V,Std SILASTIC Rect |
Data Sheet |
|
|
||||||||||||
|
1N4007A |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
1N4007-B |
Rectron |
Rectifiers Vr/1000V Io/1A BULK |
Data Sheet |
|
|
||||||||||||
