Product Summary

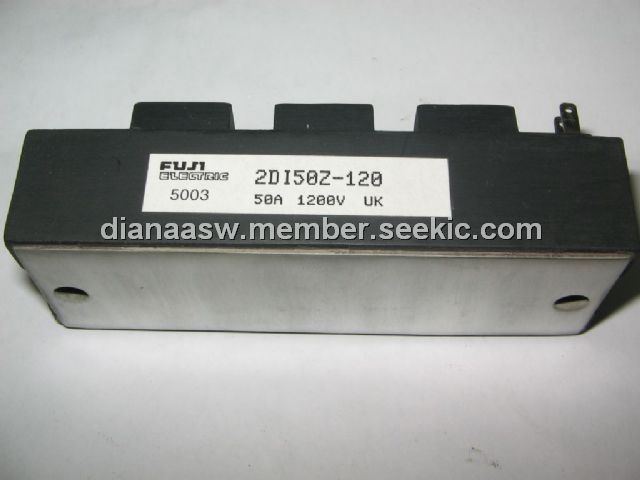

The 2DI50Z-120 is a power transistor module. The applications of the 2DI50Z-120 include high power switching, AC motor controls, DC motor controls, uninterruptible power supply.
Parametrics
2DI50Z-120 absolute maximum ratings: (1)VCBO: 1200 V; (2)VCEO: 1200 V; (3)VEBO: 10 V; (4)IC: 50 A; (5)ICP: 100 A; (6)IB: 3 A; (7)IBP: 6 A; (8)Pc: 400 W; (9)Tj: +150 ℃; (10)Tstg: -40 to +125 ℃.
Features
2DI50Z-120 features: (1)high voltage; (2)including free wheeling diode; (3)excellent safe operating area; (4)insulated type.

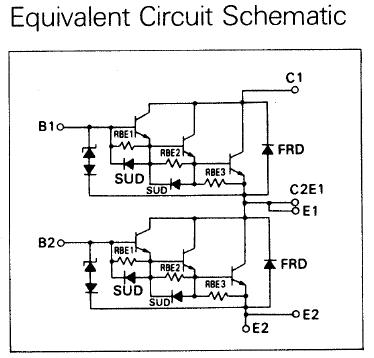

Diagrams
