Product Summary

The AO4413 is a P-Channel Enhancement Mode Field Effect Transistor. It uses advanced trench technology to provide excellent RDS(ON), and ultra-low low gate charge with a 25V gate rating. The AO4413 is suitable for use as a load switch or in PWM applications.

Parametrics

AO4413 absolute maximum ratings: (1)Drain-Source Voltage: -30 V; (2)Gate-Source Voltage: ±25 V; (3)Continuous Drain Current: -15 A at TA=25 ℃, -12.8 A at TA=70 ℃; (4)Pulsed Drain Current: -80 A; (5)Power Dissipation: 3 W at TA=25 ℃, 2.1 W at TA=70 ℃; (6)Junction and Storage Temperature Range: -55 to 150 ℃.

Features

AO4413 features: (1)VDS (V) = -30V; (2)ID = -15A; (3)RDS(ON) < 7mΩ (VGS = -20V); (4)RDS(ON) < 8.5mΩ (VGS = -10V).

Diagrams

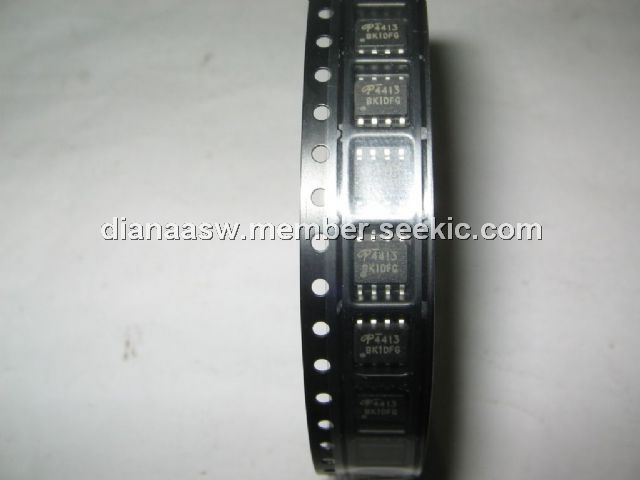

AO4413 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AO4413
AO4413


MOSFET P CH 30V 15A SOIC 8

Data Sheet

0-1: $0.67
1-25: $0.53
25-100: $0.47
100-250: $0.41
250-500: $0.37
500-1000: $0.29
